title: "Excavator Common Fault 5-Minute Diagnosis Method"

date: 2026-07-24

author: EquipNode

tags: Maintenance, Fault Diagnosis, Parts Selection, Used Equipment, Maintenance Tips

In the construction machinery sector, equipment downtime directly impacts project schedules and cost control. According to statistics, heavy equipment repair costs rose 15% year-on-year in 2026, yet early diagnosis can reduce repair expenses by 40%. Mastering rapid fault diagnosis skills has become an essential capability for every operator and site manager.

1. Why 5-Minute Diagnosis Matters

Traditional repair workflows often require waiting for a specialist technician to arrive on-site, averaging 2–4 hours. A preliminary 5-minute on-site diagnosis can quickly narrow down the problem scope, avoiding secondary damage caused by blind disassembly. According to industry data, projects that adopt rapid diagnosis see an average 18% improvement in Overall Equipment Effectiveness (OEE).

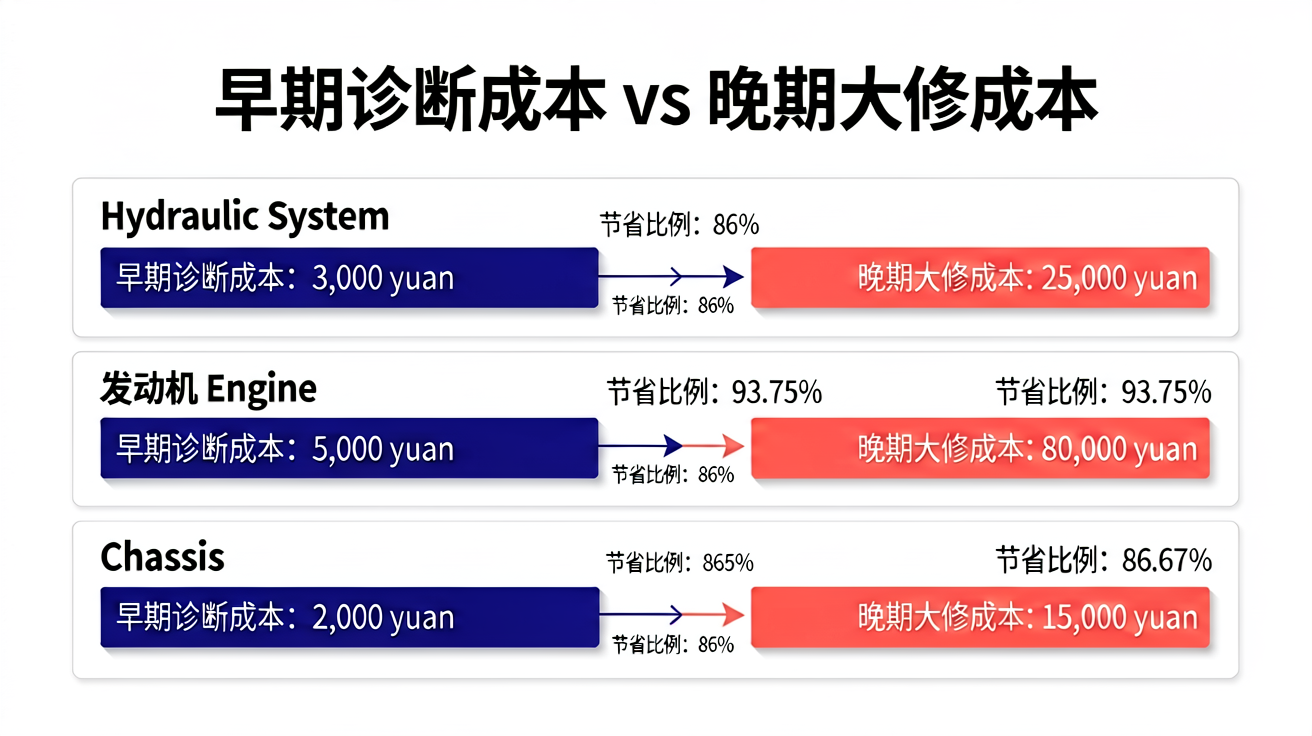

Cost Comparison Infographic

Cost Comparison: Early Diagnosis Repair Cost vs. Late-Stage Overhaul Cost

  • Hydraulic system: ¥3,000 vs. ¥25,000
  • Engine: ¥5,000 vs. ¥80,000
  • Undercarriage: ¥2,000 vs. ¥15,000

2. Hydraulic System Fault Diagnosis

The hydraulic system is the excavator's "circulatory system." Common faults include sluggish movement, weak force, and oil leaks. 5-Minute Diagnosis Method:

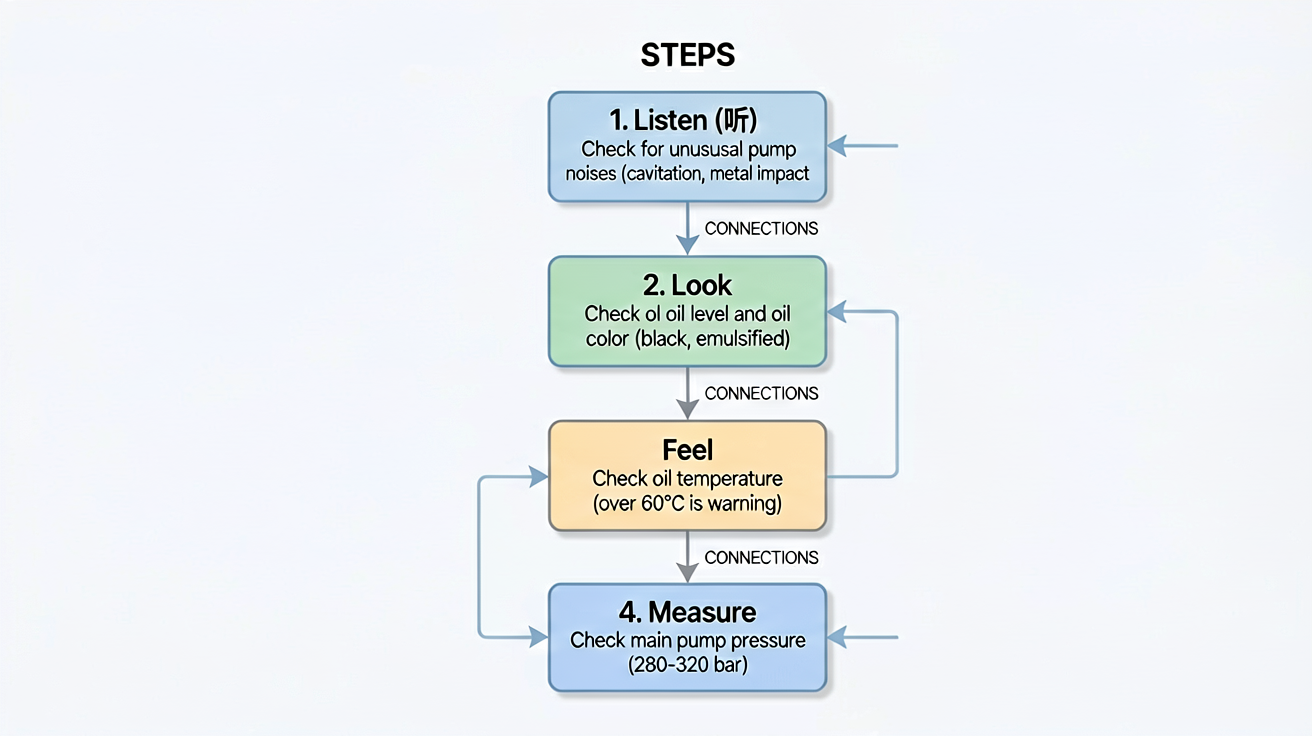

Hydraulic System Diagnosis Flowchart

Listen: While the engine is running, check for abnormal noises from the hydraulic pump (cavitation, metal clanking)

Look: Check whether the oil tank level is normal and whether the fluid has turned black or emulsified

Touch: Check for abnormal hydraulic oil temperature (touch the tank wall; above 60°C requires caution)

Measure: Use a pressure gauge to test main pump pressure (normal range: 280–320 bar)

Quick Inspection Checklist:

  • [ ] Oil level in the upper-middle range of the gauge marks
  • [ ] Oil is clear and free of contaminants
  • [ ] Filter element indicator has not triggered an alarm
  • [ ] No seepage at any connection joints

If you need a quote for SANY pump truck hydraulic systems, feel free to contact us.

3. Engine Fault Diagnosis

Engine faults typically manifest as difficulty starting, insufficient power, and black smoke. Rapid Troubleshooting Steps:

Check the fuel system: Fuel tank level, fuel filter, water separator

Check the intake system: Whether the air filter is clogged (replace if pressure differential exceeds 5 kPa)

Check the exhaust system: Whether the turbocharger has air leaks

Check the electronic control system: Use a diagnostic tool to read fault codes

Common Fault Code Quick Reference:

  • P0101: Mass Airflow Sensor Abnormal
  • P0301–P0304: Cylinder Misfire
  • P0191: Fuel Pressure Sensor Abnormal

4. Parts Selection Guide

Choosing between OEM parts and aftermarket parts is an eternal debate. Selection Principles:

Parts Selection Comparison Chart

Must Use OEM Parts:

  • Core hydraulic components such as hydraulic pumps and main control valves
  • Core engine components such as cylinder liners, pistons, and crankshafts
  • Electronic Control Units (ECU) and sensors

Quality Aftermarket Parts May Be Considered:

  • Filter elements (oil, fuel, air)
  • Wear parts such as buckets and bucket teeth
  • General-purpose parts such as oil lines and fittings

Selection Tips:

Verify part number (OEM number) compatibility

Check material certifications and inspection reports

Compare quotes from at least 3 suppliers

Request a warranty period (minimum 6 months)

5. Key Points for Used Equipment Evaluation

The global used construction machinery market is projected to reach $243 billion in 2026. When evaluating used equipment, use the 5-Minute Quick Inspection Method:

Exterior Inspection (1 minute):

  • Check structural welds on the body for cracks
  • Check hydraulic cylinders for oil leaks and scoring
  • Assess wear level of drive wheels and track rollers

Startup Inspection (2 minutes):

  • Is cold start smooth?
  • Is idle speed stable?
  • Response speed of all movements

Working Inspection (2 minutes):

  • Maximum digging force test
  • Swing speed and braking performance
  • Travel straightness

If you need a quote for Caterpillar used equipment, feel free to contact our sales team.

6. Maintenance Cost Control Tips

Preventive Maintenance: Follow scheduled maintenance intervals — costs are 60% lower than breakdown repairs

Bulk Purchasing: Annual framework agreements for common parts can save 15–20%

In-House Repairs: Develop an internal maintenance team to reduce outsourcing costs

Remanufacturing: Recondition and reuse high-value components such as hydraulic pumps and valve assemblies

7. Case Study: Hydraulic System Fault Handling at a Construction Site

A 36-ton excavator at a construction site suddenly experienced weak left-side travel. The operator performed an on-site diagnosis:

Checked hydraulic oil level: Normal

Checked left-side travel motor: Abnormal noise detected

Checked left-side main pump pressure: Only 200 bar (normal: 300 bar)

Diagnosis: Internal leakage in the left-side main pump

Resolution: The main pump was replaced on-site, restoring full operation within 2 hours and avoiding the cost of towing the entire machine (approximately ¥8,000).

Summary

Mastering the 5-minute rapid diagnosis method enables quick problem identification in the early stages of a fault, reducing downtime and repair costs. It is recommended that operators perform a daily equipment check once a week and develop preventive maintenance habits. EquipNode provides professional maintenance guidance and parts supply services to keep your equipment running at peak efficiency.
